A downloadable tool for Windows and macOS

Public Beta

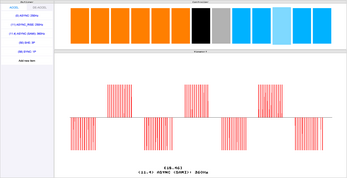

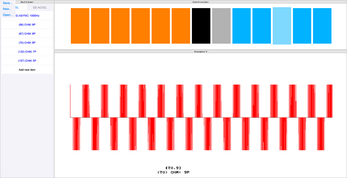

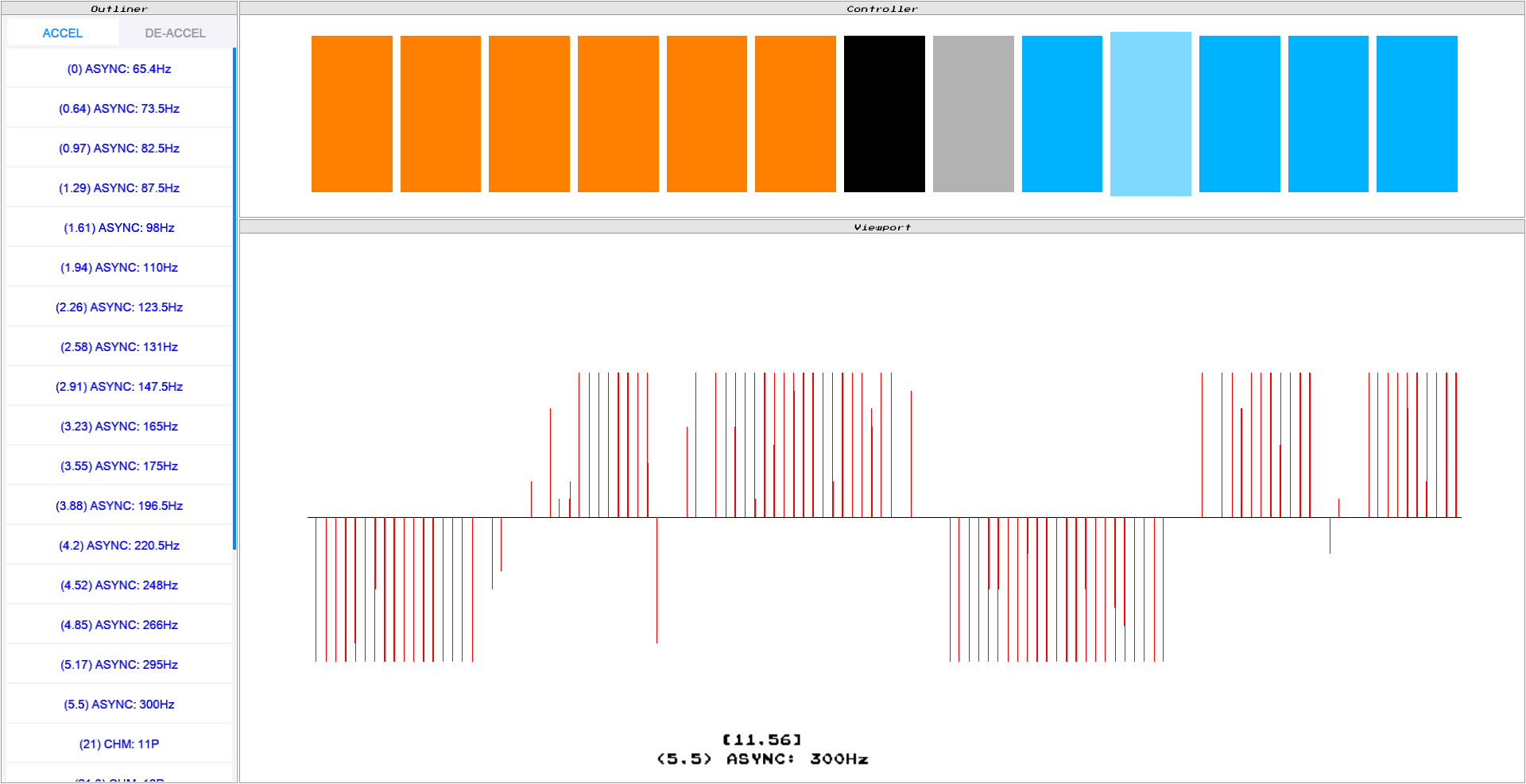

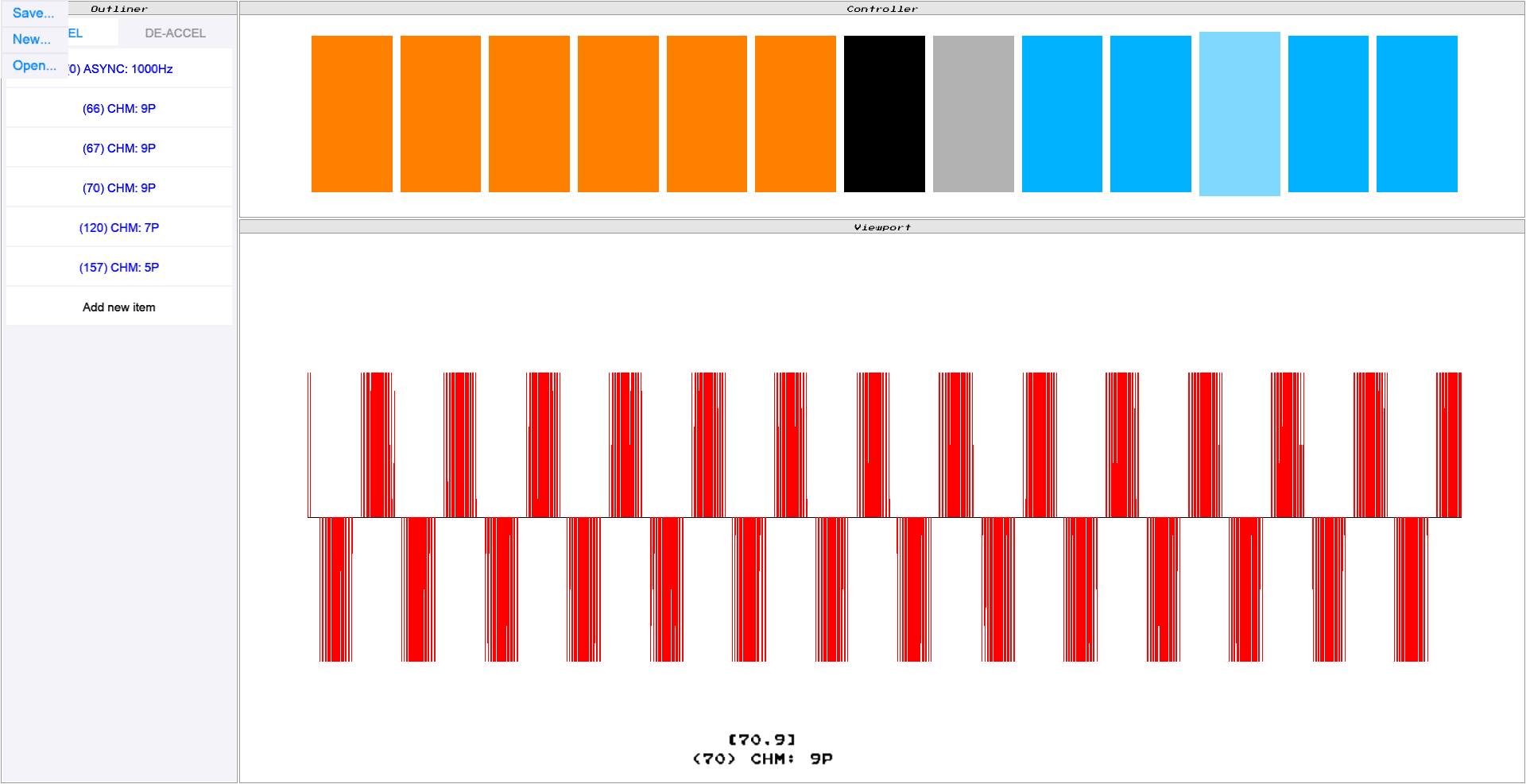

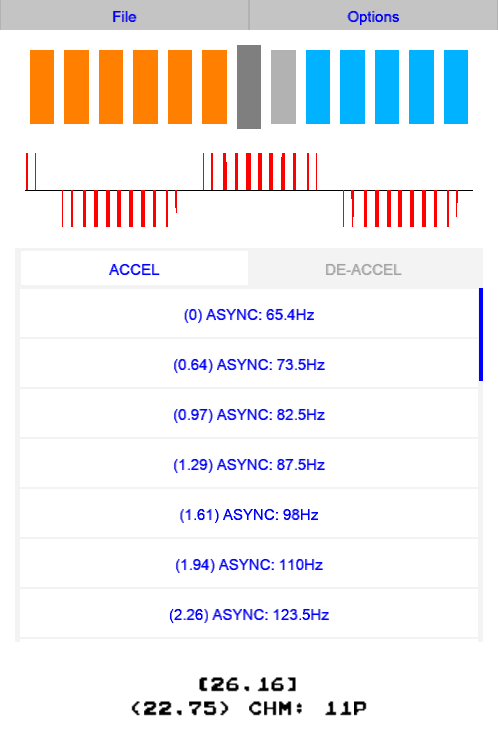

Small application that lets you recreate the waveforms that are generated by motor control techniques. They are most audible on bigger machines like trains, electric cars/busses, cranes etc.

Simulation possibilities:

CSIChopperVVVF
Extremley basicBasic implementationHas most features at the moment


Controls for PC/Desktop

KeyAction
Space(Hover over item with cursor)  adds new item above
QTurn off converter
WAccelerate
SDecelerate
DEL/BackspaceDeletes current item that is hovered by the cursor



Download

Download
VVVF_Chopper_Studio_17012026.zip 4.5 MB
Download
VVVF Chopper Studio Mac 1.0.dmg 8.1 MB
